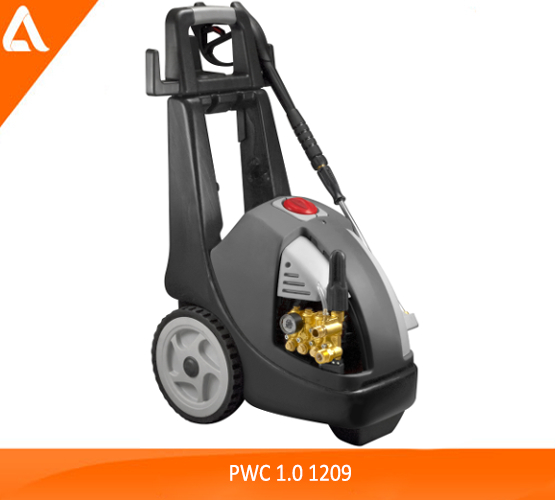

PWC 1.0 1209 (120 Bar) 4 poles electrical motor (1450 RPM) with thermal protection Three ceramic coated pistons, brass linear pump head with built-in by-pass valve Suction and delivery S/S valves. Detergent built-in tank for indirect suction Pressure regulator Glicerine pressure gauge Accessory holder Hose-holder Ergonomic handle
TECHNICAL SPECIFICATION PWC 1.0 1209 operat. pressure/max 120 bar-2175 psi delivery rate 510 l/h-2.23 GPM abs. power/voltage 2300W - 230V~50Hz 1 ph motorpump type/RPM MP3/1450 RPM max. water inlet temperature 40 °C dimension/weight 59x37x87cm / 26 Kg - 57 lbs
STANDARD ACCESSORIES Gun S’09 M22 with quickconnection. High pressure nozzle set type 030 Lance M22. High pressure hose 8 m Power cable 5 m
APPLICATION Facility management and hospitality industries Automobiles industries and other related sectors Commercial and industrial cleaning service provider Food and beverages. Poultry and farms etc. Hotels and resorts, farm house etc.
PWC 4.0 1509 (150 Bar) 4 poles electrical motor (1450 RPM) with thermal protection and water cooling (model 2017). Three ceramic coated pistons, brass linear pump head with built-in by-pass valve Suction anddelivery S/S valves. Low voltage and delayed Total Stop (model 2017) Detergent built-in tank for indirect suction Pressure regulator Glicerine pressure gauge Hose-reel (optional). Accessory holder Power cable holder Ergonomic handle
TECHNICAL SPECIFICATION PWC 4.0 1509 operat. pressure/max 150 bar-2320 psi delivery rate 540 l/h-2.37 GPM abs. power/voltage 3000W - 230V~50Hz 1 ph motorpump type/RPM MP4/1450 RPM max. water inlet temperature 40 °C dimension/weight 76x41x75cm / 33 kg - 72,6 lbs
STANDARD ACCESSORIES Gun M22 - 3/8 (mod 1509) Lance M22 high/low pressure Nozzle type 030 (mod 1509) High pressure hose 8 m (mod. 1509). Power cable 5 m
APPLICATION Facility management and hospitality industries Pharmaceutical and chemical industries Automobiles industries and other related sectors Commercial and industrial cleaning service provider Food and beverages. Power and petrochemical industries Poultry and farms. Hotels and resorts, farm house etc.

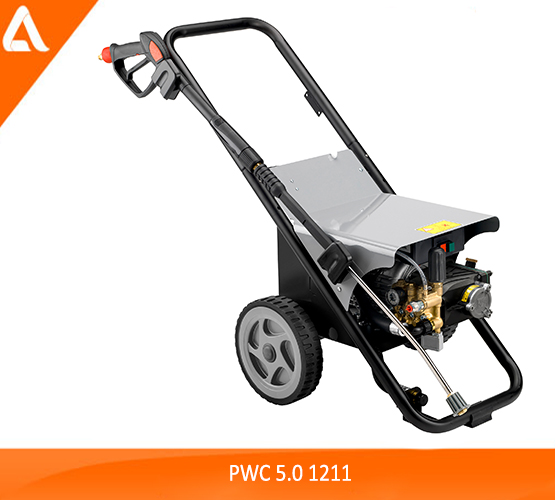

PWC 5.0 1211 (150 Bar) 4 poles electrical motor (1450 RPM) with thermal protection. Three ceramic coated pistons, brass linear pump head with built-in by-pass valve Suction anddelivery S/S valves. Total Stop system Integrated detergent suction with external suction probe. Pressure regulator Glicerine pressure gauge Hose-reel (optional). Accessory holder Power cable holder Steel frame and cover
TECHNICAL SPECIFICATION PWC 5.0 1211 operat. pressure/max 150 bar-2175 psi delivery rate 660 l/h-2.91 GPM abs. power/voltage 3000W - 230V~50Hz 1 ph motorpump type/RPM MP3/1450 RPM max. water inlet temperature 40 °C dimension/weight 50x90x83cm / 37 kg - 81 lbs
STANDARD ACCESSORIES Gun M22 - 3/8 (mod 1211) Lance M22 high/low pressure Nozzle type 045 (mod 1211) High pressure hose 8 m (mod. 1211). Power cable 5 m
APPLICATION Facility management and hospitality industries Pharmaceutical and chemical industries Automobiles industries and other related sectors Commercial and industrial cleaning service provider Food and beverages. Power and petrochemical industries Poultry and farms. Hotels and resorts, farm house etc.

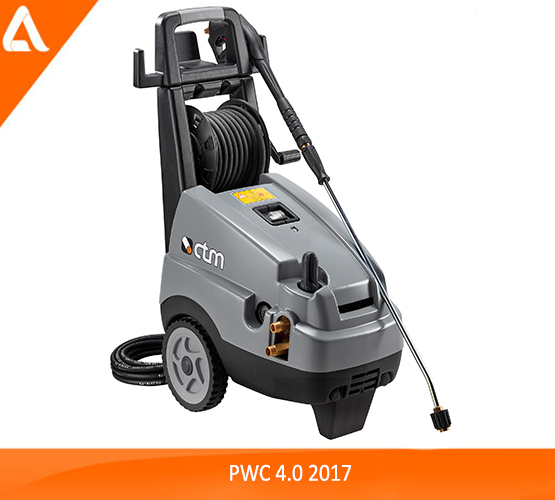

PWC 4.0 2017 (200 Bar) 4 poles electrical motor (1450 RPM) with thermal protection and water cooling (model 2017). Three ceramic coated pistons, brass linear pump head with built-in by-pass valve Suction anddelivery S/S valves. Low voltage and delayed Total Stop (model 2017) Detergent built-in tank for indirect suction Pressure regulator Glicerine pressure gauge Hose-reel (optional). Accessory holder Power cable holder Ergonomic handle
TECHNICAL SPECIFICATION PWC 4.0 2017 operat. pressure/max 200 bar-2900 psi delivery rate 1000 l/h-4.4 GPM abs. power/voltage 3000W - 230V~50Hz 1 ph motorpump type/RPM MPW4/1450 RPM max. water inlet temperature 40 °C dimension/weight 76x40x75cm / 44 kg - 96,8 lbs
STANDARD ACCESSORIES Gun M22 - 3/8 with rotating coupling (mod. 2017). Lance M22 high/low pressure Nozzle type 045 (mod 2017) High pressure hose 10 m (mod. 2017). Power cable 5 m
APPLICATION Facility management and hospitality industries Pharmaceutical and chemical industries Automobiles industries and other related sectors Commercial and industrial cleaning service provider Food and beverages. Power and petrochemical industries Poultry and farms. Hotels and resorts, farm house etc.
PWC 5.0 2021 (200 Bar) 4 poles electrical motor (1450 RPM) with thermal protection. Three ceramic coated pistons, brass linear pump head with built-in by-pass valve Suction anddelivery S/S valves. Total Stop system Integrated detergent suction with external suction probe. Pressure regulator Glicerine pressure gauge Hose-reel (optional). Accessory holder Power cable holder Steel frame and cover
TECHNICAL SPECIFICATION PWC 5.0 2021 operat. pressure/max 200 bar-2900 psi delivery rate 1260 l/h-5.55 GPM abs. power/voltage 9400W - 400V~50Hz 3ph motorpump type/RPM MPW5/1450 RPM max. water inlet temperature 40 °C dimension/weight 50x90x83cm / 58 Kg - 128 lbs
STANDARD ACCESSORIES Gun M22 - 3/8” with rotating coupling (mod. 2021) Lance M22 high/low pressure Nozzle type 075 (mod 2021) High pressure hose 10 m (mod. 2021). Power cable 5 m
APPLICATION Facility management and hospitality industries Pharmaceutical and chemical industries Automobiles industries and other related sectors Commercial and industrial cleaning service provider Food and beverages. Power and petrochemical industries Forge and steel plants Construction and Transport (air, ship and rails). Poultry and farms etc.
PWH 4.0 1211 (150 Bar) 4 poles electrical motor (1450 RPM) with thermal protection water cooling (three phase models). Three ceramic coated pistons (1 ph), full ceramic pistons (3 ph), brass linear pump head with built-in by-pass valve Suction anddelivery S/S valves. Low voltage and delayed Total Stop Vertical burner with high thermal efficiency steel coil Temperature regulation gauge with high sensitive stainless steel sensor. r Detergent built-in tank for indirect suction Auxiliary motor for burner Hose reel with brake (optional).
TECHNICAL SPECIFICATION PWH 4.0 1211 operat. pressure/max 150 bar-2175 psi delivery rate 660 l/h-2.91 GPM abs. power/voltage 3000W - 230V~50Hz 1 ph motorpump type/RPM MP4/1450 RPM max. water inlet temperature 40/140 °C dimension/weight 94x65x90cm / 112 Kg - 246 lbs
STANDARD ACCESSORIES Gun M22 - 3/8 with rotating coupling (mod 1211) Gun M22 - 3/8 with rotating coupling (mod. 1611) Lance M22 high/low pressure Nozzle type 045 (mod 1211) Nozzle type 075 (mod 1611) High pressure hose 8 m (mod. 1211). High pressure hose 10 m (mod. 1611). Power cable 5 m
APPLICATION Facility management and hospitality industries Pharmaceutical and chemical industries Automobiles industries and other related sectors Commercial and industrial cleaning service provider Food and beverages. Power and petrochemical industries Forge and steel plants Construction and Transport (air, ship and rails). Poultry and farms etc.

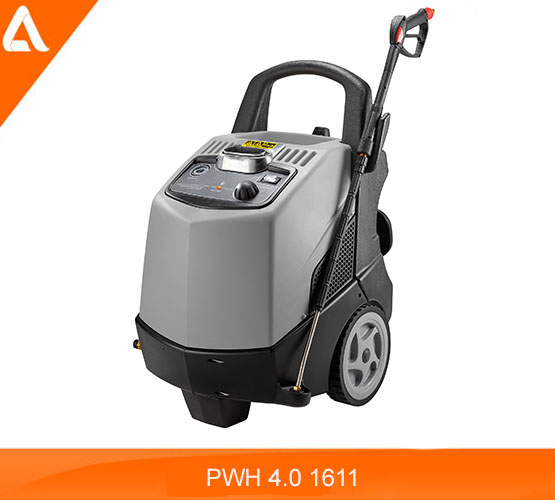

PWH 4.0 1611 (160 Bar) 4 poles electrical motor (1450 RPM) with thermal protection water cooling (three phase models). Three ceramic coated pistons (1 ph), full ceramic pistons (3 ph), brass linear pump head with built-in by-pass valve Suction anddelivery S/S valves. Low voltage and delayed Total Stop Vertical burner with high thermal efficiency steel coil Temperature regulation gauge with high sensitive stainless steel sensor. r Detergent built-in tank for indirect suction Auxiliary motor for burner Hose reel with brake (optional).
TECHNICAL SPECIFICATION PWH 4.0 1611 operat. pressure/max 160 bar-2320 psi delivery rate 660 l/h-2.91 GPM abs. power/voltage 4300W - 400V~50Hz 3 ph motorpump type/RPM MP4/1450 RPM max. water inlet temperature 40/140 °C dimension/weight 594x65x90cm / 128 Kg - 282 lbs
STANDARD ACCESSORIES Gun M22 - 3/8 with rotating coupling (mod 1211) Gun M22 - 3/8 with rotating coupling (mod. 1611) Lance M22 high/low pressure Nozzle type 045 (mod 1211) Nozzle type 075 (mod 1611) High pressure hose 8 m (mod. 1211). High pressure hose 10 m (mod. 1611). Power cable 5 m
APPLICATION Facility management and hospitality industries Pharmaceutical and chemical industries Automobiles industries and other related sectors Commercial and industrial cleaning service provider Food and beverages. Power and petrochemical industries Forge and steel plants Construction and Transport (air, ship and rails). Poultry and farms etc.

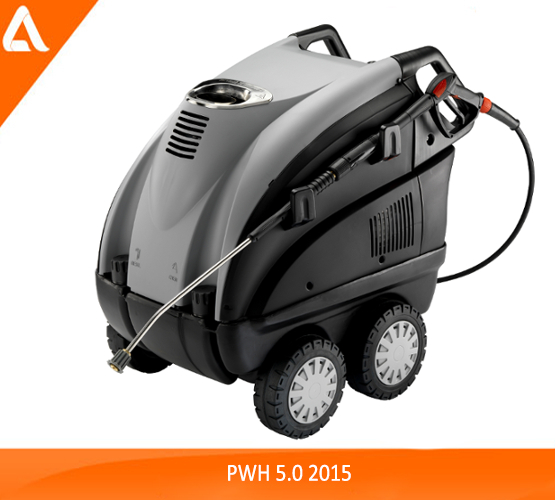

PWH 5.0 2015 (200 Bar) 4 poles electrical motor (1450 RPM) with thermal protection water cooling (three phase models). Three full ceramic pistons, brass linear pump head with built-in by-pass valve Suction anddelivery S/S valves. Low voltage and delayed Total Stop. Vertical burner with high thermal efficiency steel coil. Temperature regulation gauge with high sensitive stainless steel sensor. Hose-reel with break (optional). Detergent built-in tank for indirect suction. Auxiliary motor for burner Heavy duty steel frame.
TECHNICAL SPECIFICATION PWH 5.0 2015 operat. pressure/max 200 bar-2900 psi delivery rate 900 l/h-3.96 GPM abs. power/voltage 7300W - 400V~50Hz 3 ph motorpump type/RPM MPW4/1450 RPM max. water inlet temperature 40/140 °C dimension/weight 94x65x90cm / 128 Kg - 282 lbs
STANDARD ACCESSORIES Gun M22 - 3/8” with rotating coupling. Lance M22 high/low pres. Nozzle type 045 H. P. hose 10 m Power cable 5 m
APPLICATION Facility management and hospitality industries Pharmaceutical and chemical industries Automobiles industries and other related sectors Commercial and industrial cleaning service provider Food and beverages. Power and petrochemical industries Forge and steel plants Construction and Transport (air, ship and rails). Poultry and farms etc.
