WM 250(50 L) The BASIC WM 250 is the most classic and common industrial single-phase vacuum cleaner with 2 by-pass motors, 50 liters capacity, stainelss steel containers and conventional filtering system with pocket filter. This model is designed for non-specific multi-purpose application in the industrial field This series of BASIC industrial vacuum cleaners refers to the more classic and simple filtration system normally used by most common industrial vacuum cleaners with filters made of polyester fabric / non-woven fabric with pockets or star shaped filters offering standard filtration of 3μ particles that can be increased by using optional filters with PTFE membrane for 1 μ particles. Vacuums provided with central inlet are multi-purpose for the suction of dust, solids and liquids within the tank capacity These machines are equipped with filter cleaning systems with manual vertical shaking, suited to more general and less specific types of suction.
TECHNICAL SPECIFICATION WM 250 Motorization N°2 By-pass Power 2200 W Voltage 230 V Frequency 50 Hz Air Flow 340 m3/h MAX Depression 230 mBar Capacity 50 L Dimensions 54x58h135 cm Weight 36 Kg
Standard Accessories Flex Hose Eva 3 meters with ø 50 hose cuffs Quick fit Aluminum accessory connection Steel chromed Handgrip ø 50 Dust or Wet stainless steel floor brush Width 420 mm Steel chromed crevice nozzle Plastic round brush with zinc-plated ø50 Rubber cone with zinc-plated redactor
APPLICATION Textiles and warehouse. Pulp & Paper,Aviation, Automotive. Printing and Publishing. Petro chemicals and Plastics & Rubber. Automobiles industries and other heavy industries etc. Pharmaceutical and other Chemical industries. Maritime, Railroads,Electrical & Electronics. Manufacturing,Beverage, Baking. Healthcare,Food

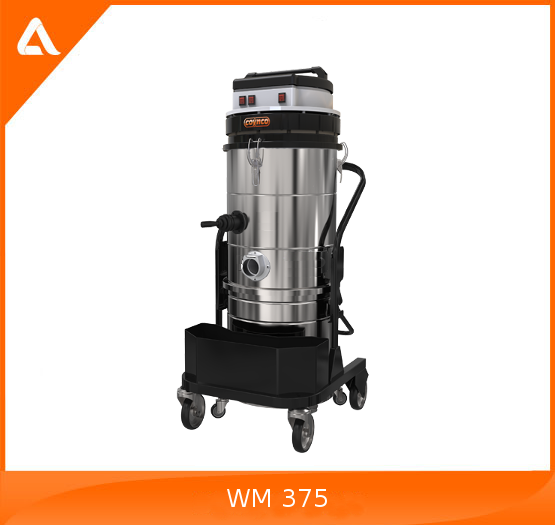

WM 375 (75 L) The BASIC BM 375 is an industrial single-phase vacuum cleaner with 3 collector motors for dust and solid materials, the ideal model to use for any type of general cleaning in your company Its manoeuvrability, combined with the compact design, allows it to be easily moved, even in the most confined spaces, facilitating routine cleaning of your machinery. This series of BASIC industrial vacuum cleaners refers to the more classic and simple filtration system normally used by most common industrial vacuum cleaners with filters made of polyester fabric / non-woven fabric with pockets or star shaped filters offering standard filtration of 3μ particles that can be increased by using optional filters with PTFE membrane for 1 μ particles. Vacuums provided with central inlet are multi-purpose for the suction of dust, solids and liquids within the tank capacity These machines are equipped with filter cleaning systems with manual vertical shaking, suited to more general and less specific types of suction.
TECHNICAL SPECIFICATION WM 375 Motorization N°3 By-pass Power 3300 W Voltage 230 V Frequency 50 Hz Air Flow 510 m3/h MAX Depression 230 mBar Capacity 75 L Dimensions 80x60h152 cm Weight 80 Kg
Standard Accessories Flex Hose Eva 3 meters with ø 50 hose cuffs Quick fit Aluminum accessory connection Steel chromed Handgrip ø 50 Dust or Wet stainless steel floor brush Width 420 mm Steel chromed crevice nozzle Plastic round brush with zinc-plated ø50 Rubber cone with zinc-plated redactor
APPLICATION Textiles and warehouse. Pulp & Paper,Aviation, Automotive. Printing and Publishing. Petro chemicals and Plastics & Rubber. Automobiles industries and other heavy industries etc. Pharmaceutical and other Chemical industries. Maritime, Railroads,Electrical & Electronics. Manufacturing,Beverage, Baking. Healthcare,Food

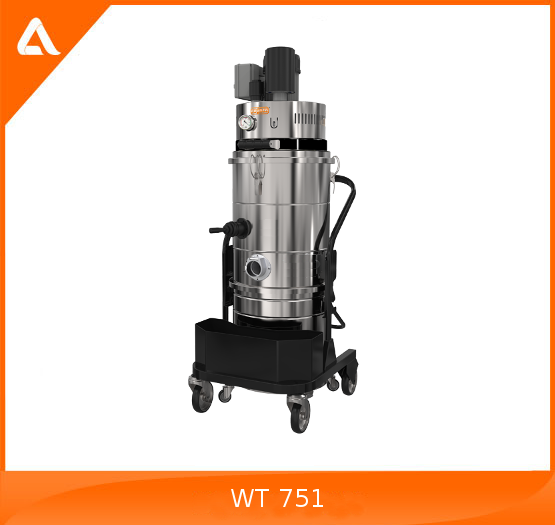

WT 751 (75 L) Industrial vacuum cleaner motorised with single or three-phase side channel turbine manufactured by Coynco made in die cast aluminium. Extremely sturdy, silent, powerful and reliable and suitable for continuous use, even 24 hours a day Made entirely of steel, the vacuum cleaners are extremely sturdy and can, therefore, be used in any working environment for general vacuum cleaning. This series of BASIC industrial vacuum cleaners refers to the more classic and simple filtration system Normally used by most common industrial vacuum cleaners with filters made of polyester fabric / non-woven fabric with pockets or star shaped filters These machines are equipped with filter cleaning systems with manual vertical shaking, suited to more general and less specific types of suction.
TECHNICAL SPECIFICATION WT 751 Motorization Turbine Power 2,2 kW Voltage 230 V Frequency 50Hz Air Flow 320 m3/h MAX Depression 300 mBar Valve Depression 200 mBar Capacity 75 L Dimensions 80x60h154 cm/td> Weight 100 Kg
Standard Accessories Flex Hose Eva 3 meters with ø 50 hose cuffs Quick fit Aluminum accessory connection Steel chromed Handgrip ø 50 Dust or Wet stainless steel floor brush Width 420 mm Steel chromed crevice nozzle Plastic round brush with zinc-plated ø50 Rubber cone with zinc-plated redactor
APPLICATION Textiles and warehouse. Pulp & Paper,Aviation, Automotive. Printing and Publishing. Petro chemicals and Plastics & Rubber. Automobiles industries and other heavy industries etc. Pharmaceutical and other Chemical industries. Maritime, Railroads,Electrical & Electronics. Manufacturing,Beverage, Baking. Healthcare,Food

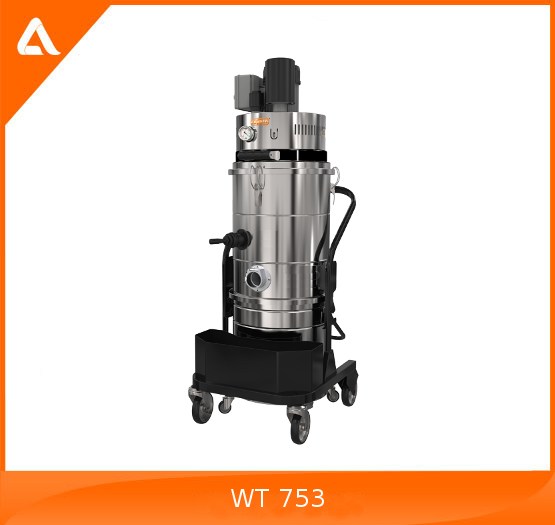

WT 753 (75 L) Industrial vacuum cleaner motorised with single or three-phase side channel turbine manufactured by Coynco made in die cast aluminium. Extremely sturdy, silent, powerful and reliable and suitable for continuous use, even 24 hours a day Made entirely of steel, the vacuum cleaners are extremely sturdy and can, therefore, be used in any working environment for general vacuum cleaning. This series of BASIC industrial vacuum cleaners refers to the more classic and simple filtration system Normally used by most common industrial vacuum cleaners with filters made of polyester fabric / non-woven fabric with pockets or star shaped filters These machines are equipped with filter cleaning systems with manual vertical shaking, suited to more general and less specific types of suction.
TECHNICAL SPECIFICATION WT 751 Motorization Turbine Power 3 kW Voltage 400 V Frequency 50-60 Hz Air Flow 320 m3/h MAX Depression 300 mBar Valve Depression 200 mBar Capacity 75 L Dimensions 80x60h154 cm/td> Weight 100 Kg
Standard Accessories Flex Hose Eva 3 meters with ø 50 hose cuffs Quick fit Aluminum accessory connection Steel chromed Handgrip ø 50 Dust or Wet stainless steel floor brush Width 420 mm Steel chromed crevice nozzle Plastic round brush with zinc-plated ø50 Rubber cone with zinc-plated redactor
APPLICATION Textiles and warehouse. Pulp & Paper,Aviation, Automotive. Printing and Publishing. Petro chemicals and Plastics & Rubber. Automobiles industries and other heavy industries etc. Pharmaceutical and other Chemical industries. Maritime, Railroads,Electrical & Electronics. Manufacturing,Beverage, Baking. Healthcare,Food

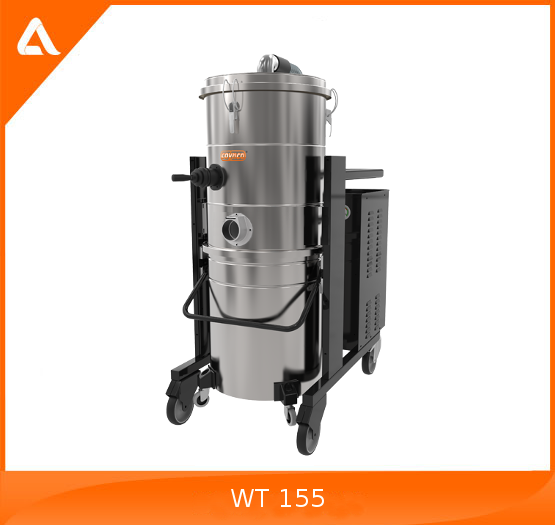

WT 155 (100 L) Industrial vacuum cleaner with 5.5 kW three-phase side channel turbine manufactured by Coynco, made in die cast aluminium. Extremely sturdy, silent, powerful and reliable and suitable for continuous use 24 hours a day. This series of BASIC industrial vacuum cleaners refers to the more classic and simple filtration system normally used by most common industrial vacuum cleaners with filters made of polyester fabric / non-woven fabric with pockets or star shaped filters offering standard filtration of 3μ particles that can be increased by using optional filters with PTFE membrane for 1 μ particles. Vacuums provided with central inlet are multi-purpose for the suction of dust, solids and liquids. These machines are equipped with filter cleaning systems with manual vertical shaking, suited to more general and less specific types of suction.
TECHNICAL SPECIFICATION BASIC WT 155 Motorization Turbine Power 5,5 kW Voltage 400 V Frequency 50-60 Hz Air Flow 520 m3/h MAX Depression 320 mBar Valve Depression 450 mBar Capacity 100 L Dimensions 100x60h140 cm Weight 150 Kg
Standard Accessories Flex Hose Eva 3 meters with ø 50 hose cuffs Quick fit Aluminum accessory connection Steel chromed Handgrip ø 50 Dust or Wet stainless steel floor brush Width 420 mm Steel chromed crevice nozzle Plastic round brush with zinc-plated ø50 Rubber cone with zinc-plated redactor
APPLICATION Textiles and warehouse,Mining. Pulp & Paper,Aviation, Automotive. Printing and Publishing,Pharmaceutical. Petro chemicals and Plastics & Rubber,Chemical. Automobiles industries and other heavy industries etc. Pharmaceutical and other Chemical industries. Maritime, Railroads,Electrical & Electronics. Manufacturing,Beverage, Baking. Healthcare,Food

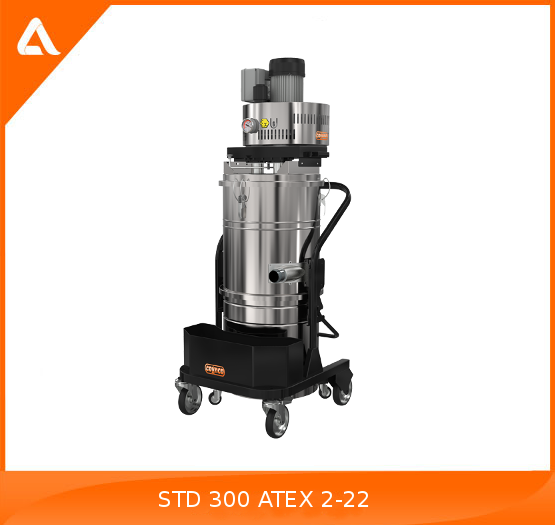

STD 300 ATEX 2-22 Atex certified industrial vacuum cleaner motorized with three-phase side channel turbine, of our production and made in die cast aluminum. Extremely sturdy, silent, powerful and reliable and suitable for continuous use, even 24 hours a day. Made entirely of steel, the vacuum cleaners are extremely sturdy and can therefore be used in any working environment or application where there are large quantities of dust to be vacuumed. The aluminized Class M cartridge filter is conductive, ensuring the discharge of static electricity and protected by a special PATENTED cyclone made of stainless steel, which, combined with the tangential type inlet, favors the cyclonic effect, avoiding direct contact of the vacuumed material with filter, thus reducing clogging. The filter shaker is formed by a mechanical-pneumatic piston, which, by moving up and down, violently hits the bottom of the filter thus creating the vibrations required for perfect cleaning and also reducing operation time. This function is performed automatically by moving a lever on the machine.
TECHNICAL SPECIFICATION STD 300 ATEX 2-22 Motorization Turbine Power 2,6 kW Voltage 400 V Frequency 50-60 Hz Air Flow 320 m3/h MAX Depression 320 mBar Valve Depression 220 mBar Capacity 75 L Dimensions 80x60h154 cm Weight 90 Kg
Standard Accessories Flex Hose Eva 3 meters with ø 50 hose cuffs Quick fit Aluminum accessory connection Steel chromed Handgrip ø 50 Dust or Wet stainless steel floor brush Width 420 mm Steel chromed crevice nozzle Plastic round brush with zinc-plated ø50 Rubber cone with zinc-plated redactor
APPLICATION Petro chemicals and Plastics Industries Pharmaceutical and other Chemical industries. Automobiles industries and other heavy industries. Cement Industries and Power Plants. Printing and Publishing Factory etc.

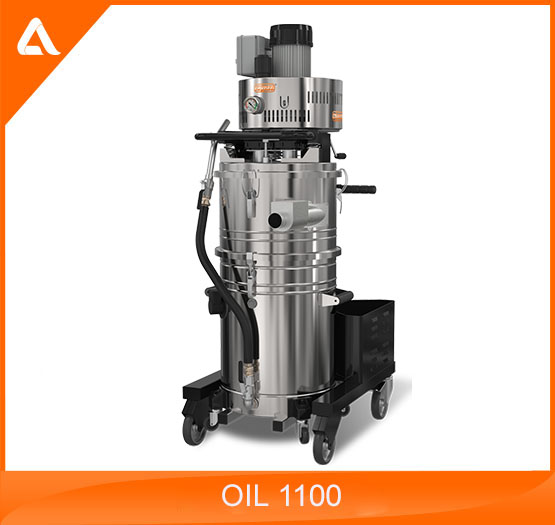

1100 OIL(100 L) Motorised industrial vacuum cleaner with single-phase or three-phase side channel turbine, of our production and made in die cast aluminium. Machine designed specifically for mechanical workshops and especially suitable for cleaning and maintenance of machine tools specifically for the suction of swarf, oils and lubricants. This model, unlike others on the market, is also equipped with a dust filter that is suitable for general cleaning in industrial environments making it unnecessary to buy a dedicated vacuum cleaner solely for this purpose The vacuum cleaner is equipped with an automatic system to stop the intake of liquids, ideal for the suction of large quantities of liquids, even with the tube immersed, as the cleaner automatically shuts down when the maximum level is reached.
TECHNICAL SPECIFICATION 1100 OIL Motorization Turbine Power 3 kW Voltage 400 V Frequency 50 Hz Air Flow 320 m3/h MAX Depression 530 mBar Valve Depression 250 mBar Capacity 100 L Dimensions 80x63h165 Weight 130 Kg
Standard Accessories Flex Hose Eva 3 meters with ø 50 hose cuffs Quick fit Aluminum accessory connection Steel chromed Handgrip ø 50 Dust or Wet stainless steel floor brush Width 420 mm Steel chromed crevice nozzle Plastic round brush with zinc-plated ø50 Rubber cone with zinc-plated redactor
APPLICATION Automobiles industries and other heavy industries etc. Petro chemicals and Plastics & Rubber. Mining and Manufacturing.

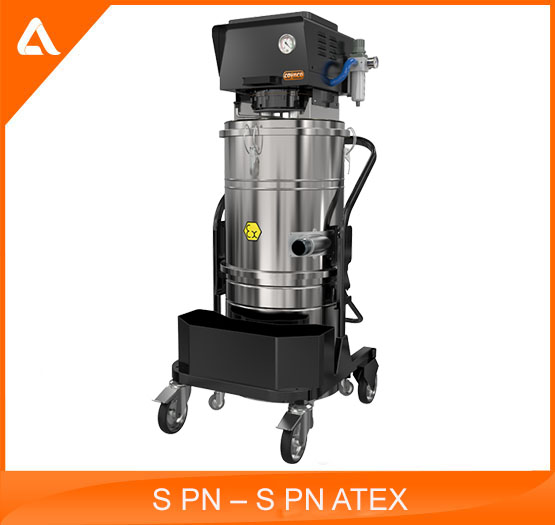

S PN – S PN ATEX (50 L) Industrial vacuum cleaner supplied with compressed air, made in accordance with the requirements of the ATEX Directive 94/9/EC in zone 1 and zone 2 for gas to zone 21 or zone 22 for dust in areas with potentially explosive atmospheres. The compressed air vacuum cleaner is indispensable where electricity is absent or forbidden, developing the suction through a venturi tube manufactured by our company. The aluminised Class M cartridge filter is conductive, ensuring the discharge of static electricity and protected by a special PATENTED cyclone made of stainless steel, The filter shaker is formed by a mechanical-pneumatic piston, which, by moving up and down, violently hits the bottom of the filter thus creating reducing operation time.
TECHNICAL SPECIFICATION S PN – S PN ATEX Suction Device Venturi SupplyPressure 4-6 Bar AirConsumption 1500 l/min Air Flow 380 m3/h FilteringSurface 13000 cm2 Depression 4-6 Bar 280 - 380 mBar Air Flow 380 m3/h Collection System 50 L Dimensions 80x60h115 Weight 64 Kg
Standard Accessories Flex Hose Eva 3 meters with ø 50 hose cuffs Quick fit Aluminum accessory connection Steel chromed Handgrip ø 50 Dust or Wet stainless steel floor brush Width 420 mm Steel chromed crevice nozzle Plastic round brush with zinc-plated ø50 Rubber cone with zinc-plated redactor
APPLICATION Approved and certified for areas ATEX 2 and 22 (mixture of dust / air), category 3G and 3D Compressed air operation, no electrical component Good alternative to anti explosive versions Compressed air consumption automatic modulator for different working conditions Washable panel filter with cyclone effect: It combines great filtering and high autonomy without intervention Mechanical filter shaker, restores filtering action quickly without manual operations Filters (optional) against thin dust or HEPA Automatic water ejection system
